USD area B deck roll forming machine

Zhongtuo roll forming machinery is very professional for decking machine building we already ship more than 60 pcs decking machine to North America area. High quality machine already let customer give so many good feedback. Among of them Be deck is the most popular profile.

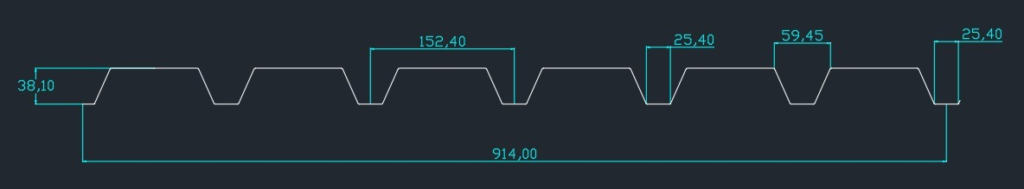

Profile drawing:

Customer requirement:

Material thickness:0.5 - 0.1mm
Material Yield strength: 550 Mpa
Material feeding width: 1219mm

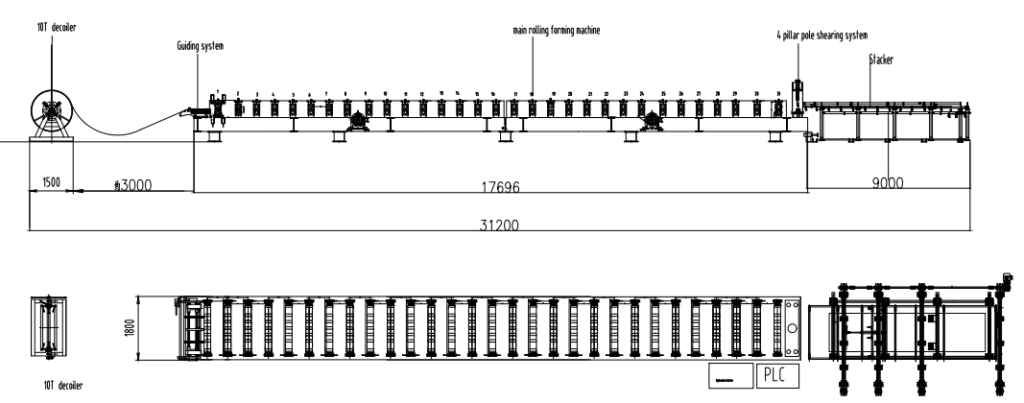

Machine working flowing:

Main components

Item	Description of Item	Unit	Quantity
1	10 ton manual decoiler	set	1
2	Main roll forming machine	set	1
3	PLC control station	set	1
4	Hydraulic oil station	set	1
5	Manual receive table	set	1

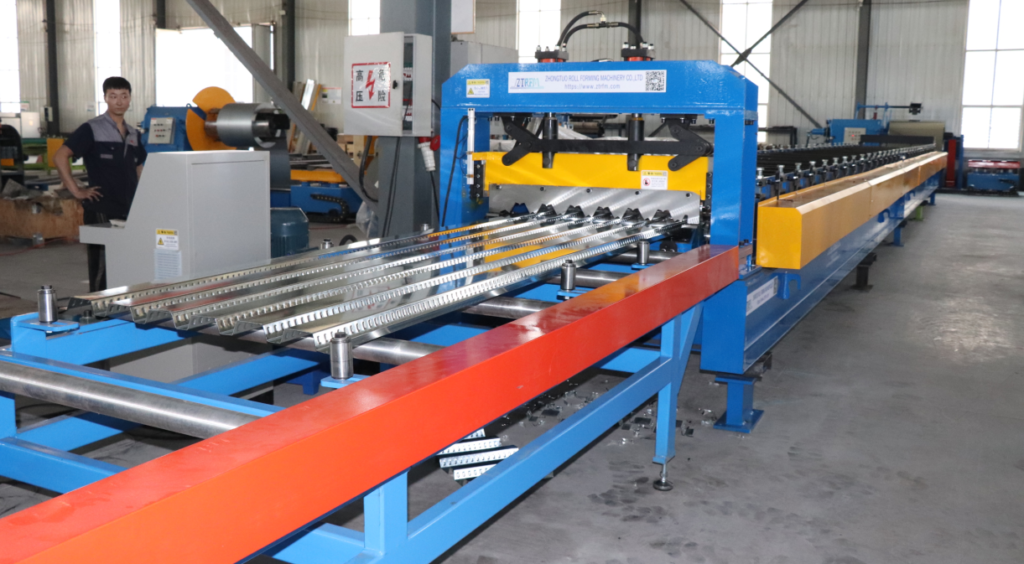

Main parameter：

Machine frame	500mm H beam structure, with 18mm welded steel middle support plate.
Material of rollers	40Cr, finishing processing
Forming stations	Roller stations :32rows
Forming stations	Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision.
Diameter of shafts	Φ95mm solid
Material of shafts	High grade 45#,with heat treatment
Forming speed	15 m/min
voltage	380V/50HZ/3P (as requested)

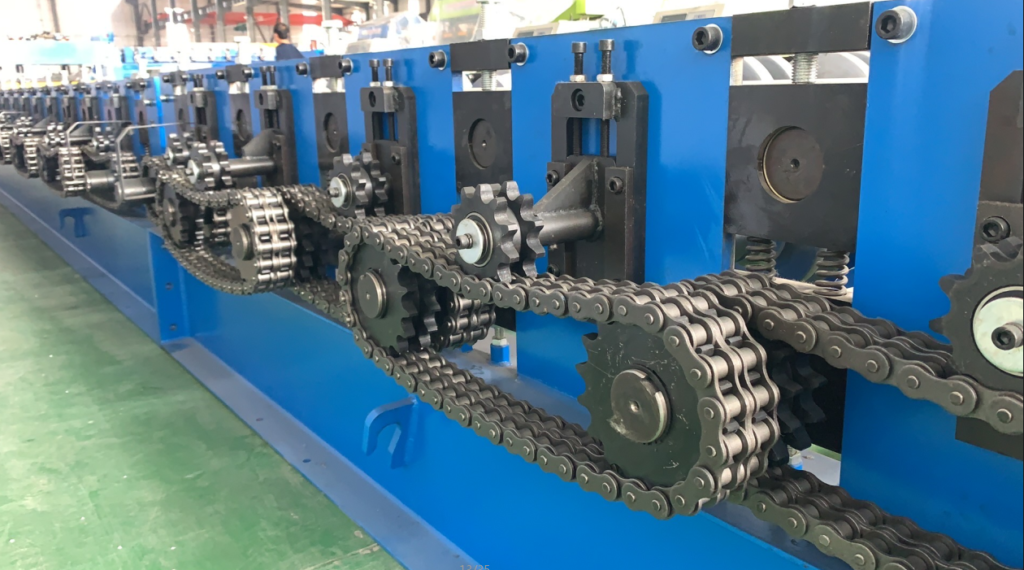

Transmission way	By 1.5 inch chain (double chains)
Main motor	18.5 KW*2
Cutting blade material	GB-Cr12 quenched treatment
Cutting type	hydraulic post cutting
Driving method	By pillar type Cylinder

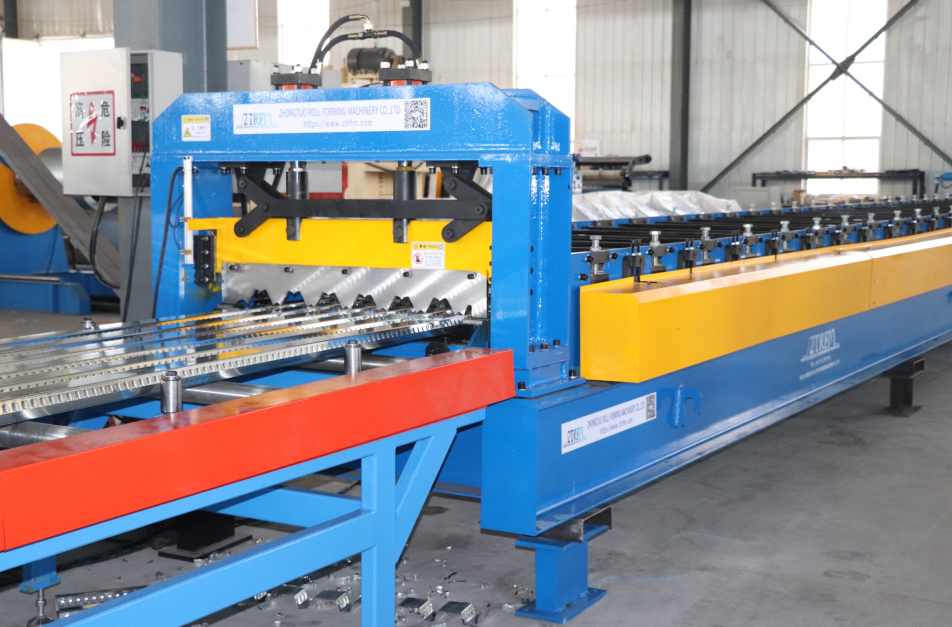

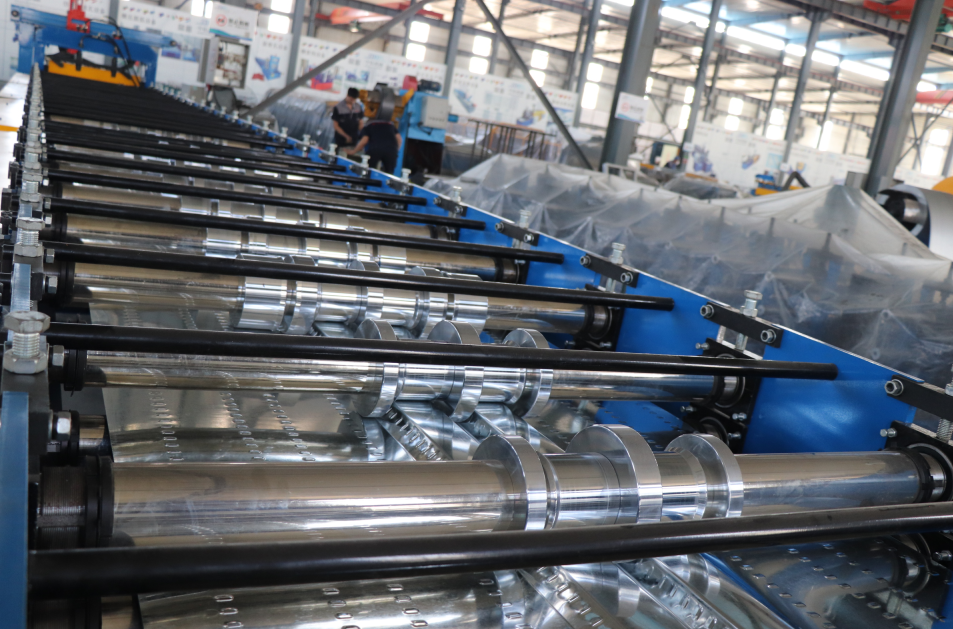

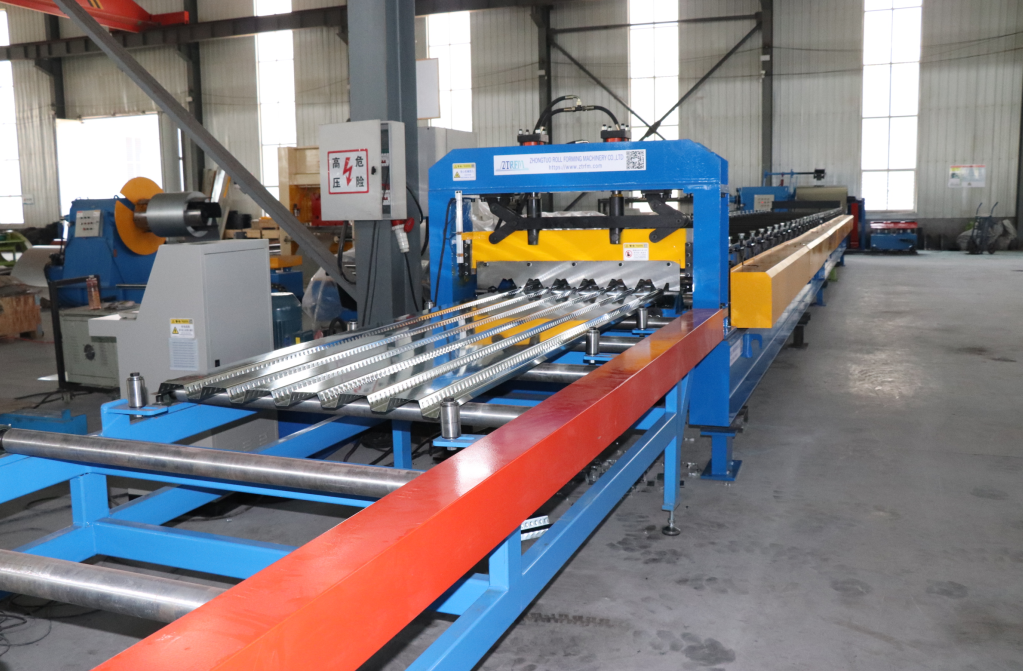

Picture for reference:

Our Machine advantages

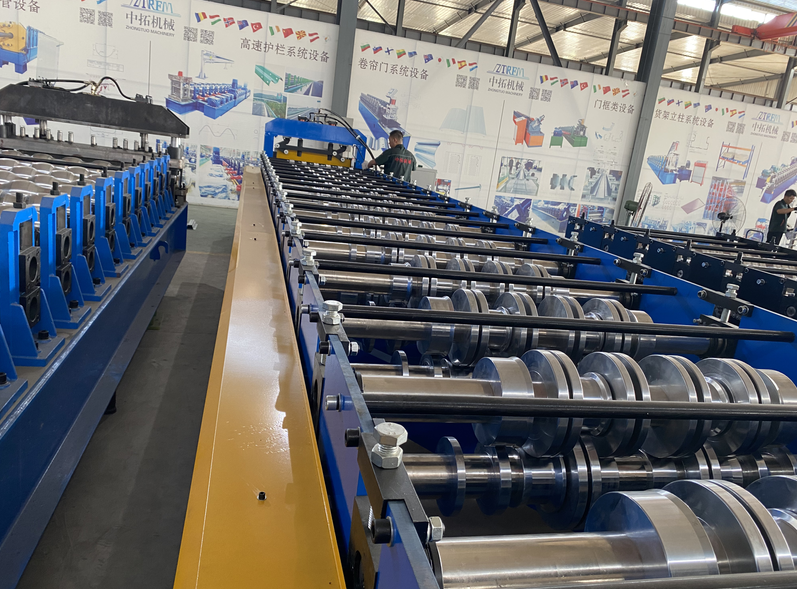

Machine base frame：

1.There are diagonal brace in the machine base frame,which can make the machine frame more stable and stronger.

2.After the whole welding, vibration is used to weld the stress. After large-scale planer machining, the horizontality and rigidity of the frame are ensured.

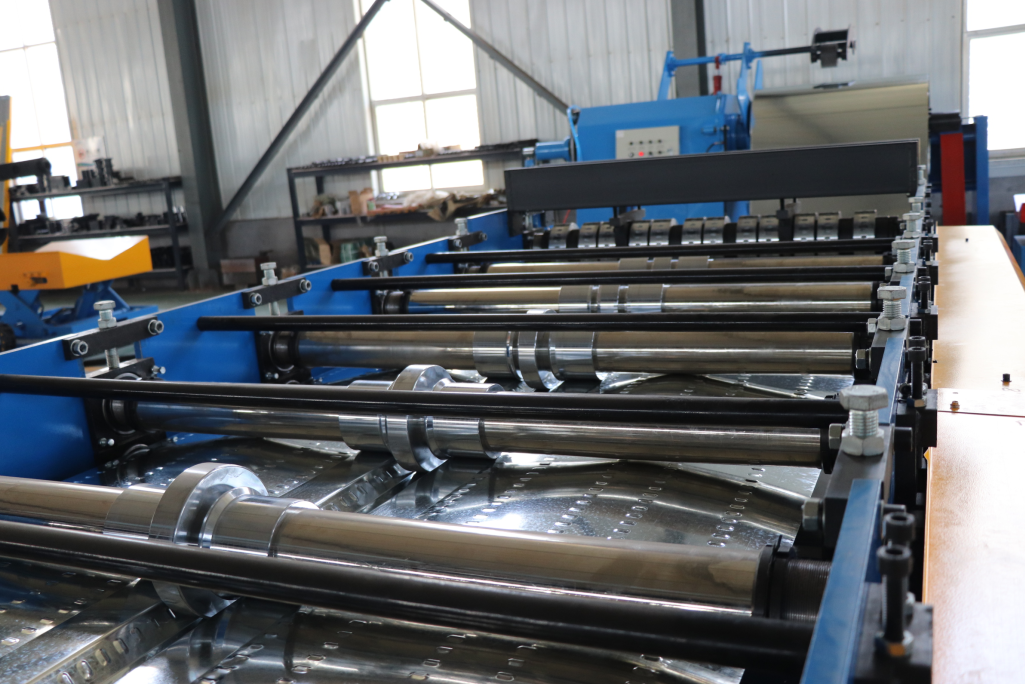

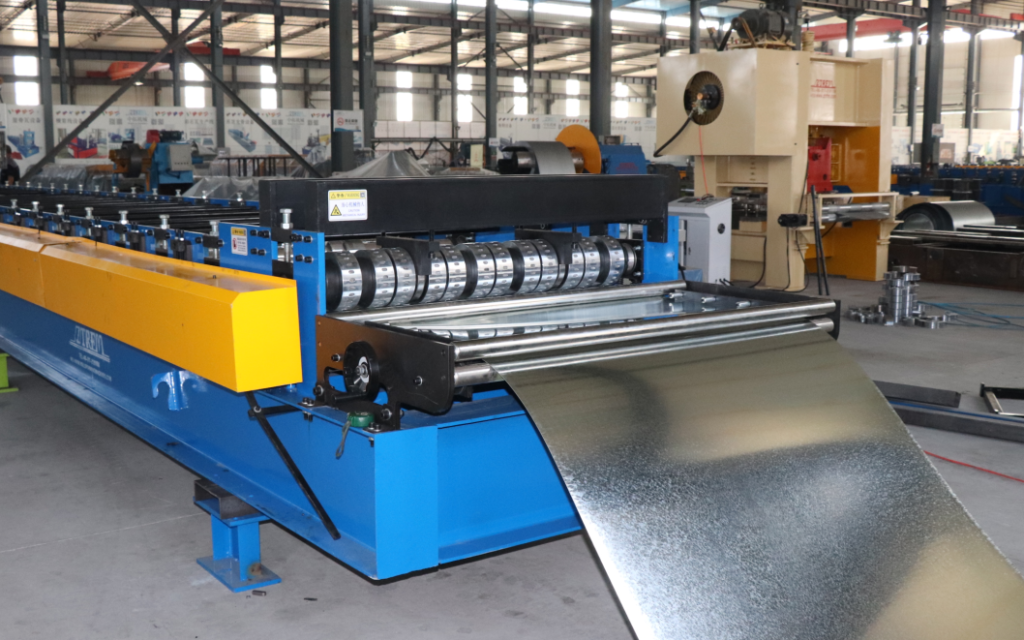

Material feeding part

Add a pair of gears to the first row of rollers (embossing rollers) to make the upper and lower rollers rotate at the same time, making it easier for the steel coil to enter the forming machine.
